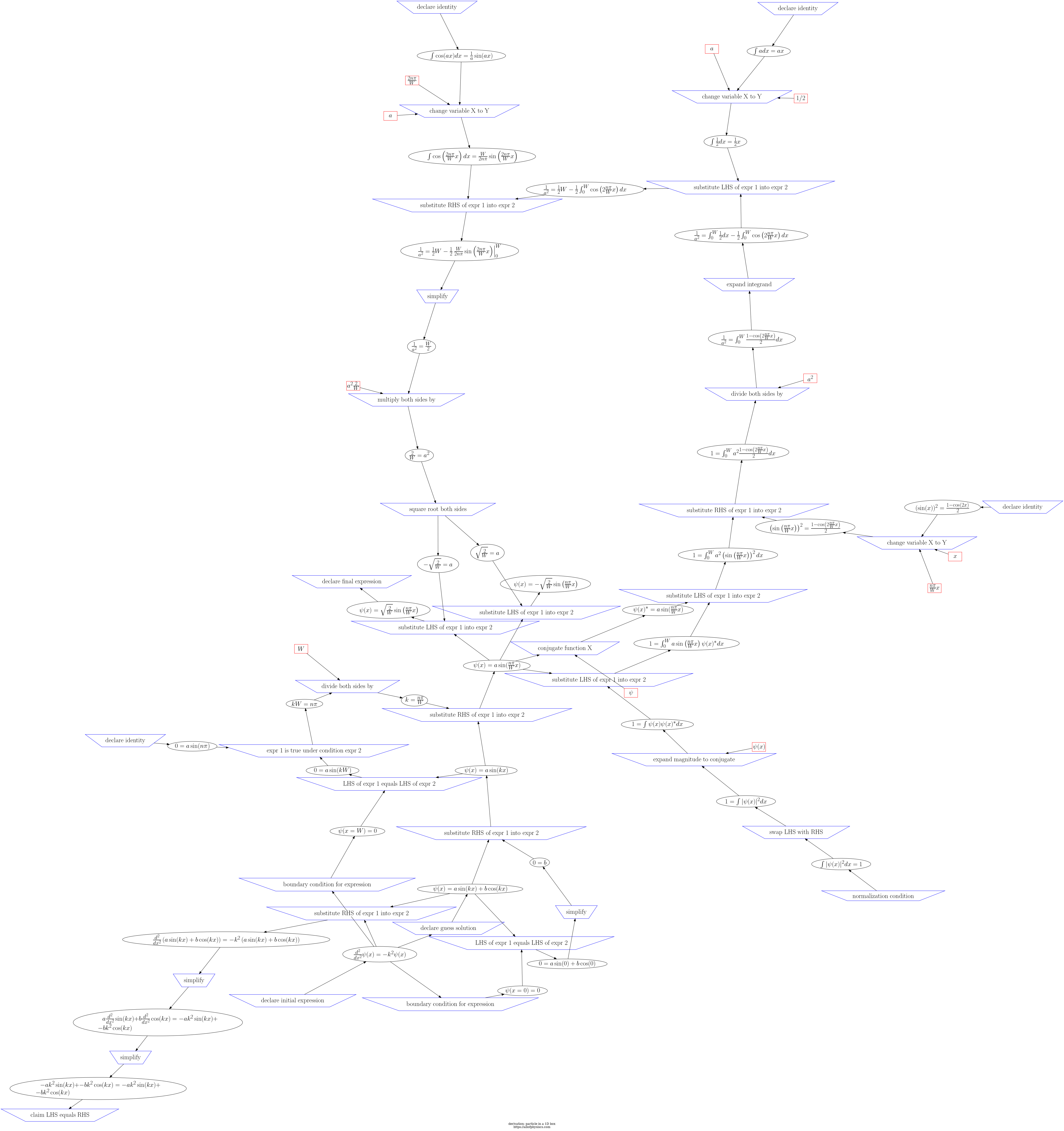

Review particle in a 1D box

step inference rule input feed output step validity (as per SymPy)
1
  • 0000111981: declare initial expression
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an initial equation.
  1. 5727578862
    \(\frac{d^2}{dx^2} \psi(x) = -k^2 \psi(x)\)
 no validation is available for declarations
2
  • 0000111237: declare guess solution
  • number of inputs: 1; feeds: 0; outputs: 1
  • Judicious choice as a guessed solution to Eq.~\ref{eq:#1} is Eq.~\ref{eq:#2},
  1. 5727578862
    \(\frac{d^2}{dx^2} \psi(x) = -k^2 \psi(x)\)
  1. 8582885111
    \(\psi(x) = a \sin(kx) + b \cos(kx)\)
 no validation is available for declarations
3
  • 0000111802: boundary condition for expression
  • number of inputs: 1; feeds: 0; outputs: 1
  • A boundary condition for Eq.~\ref{eq:#1} is Eq.~\ref{eq:#2}
  1. 5727578862
    \(\frac{d^2}{dx^2} \psi(x) = -k^2 \psi(x)\)
  1. 9585727710
    \(\psi(x=0) = 0\)
 no validation is available for assumptions
4
  • 0000111802: boundary condition for expression
  • number of inputs: 1; feeds: 0; outputs: 1
  • A boundary condition for Eq.~\ref{eq:#1} is Eq.~\ref{eq:#2}
  1. 5727578862
    \(\frac{d^2}{dx^2} \psi(x) = -k^2 \psi(x)\)
  1. 9495857278
    \(\psi(x=W) = 0\)
 no validation is available for assumptions
5
  • 0000111355: LHS of expr 1 equals LHS of expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • LHS of Eq.~\ref{eq:#1} is equal to LHS of Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 8582885111
    \(\psi(x) = a \sin(kx) + b \cos(kx)\)
  2. 9585727710
    \(\psi(x=0) = 0\)
  1. 8577275751
    \(0 = a \sin(0) + b\cos(0)\)
 input diff is pdg0009489(pdg0004037) - pdg0009489(Eq(pdg0001464, 0)) diff is pdg0001939*cos(pdg0004037*pdg0005321) + pdg0009139*sin(pdg0004037*pdg0005321) diff is -pdg0001939
6
  • 0000111457: simplify
  • number of inputs: 1; feeds: 0; outputs: 1
  • Simplify Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.
  1. 8577275751
    \(0 = a \sin(0) + b\cos(0)\)
  1. 1293913110
    \(0 = b\)
 valid
7
  • 0000111634: substitute RHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute RHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 8582885111
    \(\psi(x) = a \sin(kx) + b \cos(kx)\)
  2. 1293913110
    \(0 = b\)
  1. 9059289981
    \(\psi(x) = a \sin(k x)\)
 Not evaluated due to missing term in SymPy
8
  • 0000111355: LHS of expr 1 equals LHS of expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • LHS of Eq.~\ref{eq:#1} is equal to LHS of Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 9059289981
    \(\psi(x) = a \sin(k x)\)
  2. 9495857278
    \(\psi(x=W) = 0\)
  1. 1020010291
    \(0 = a \sin(k W)\)
 Not evaluated due to missing term in SymPy
9
  • 0000111299: declare identity
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an identity.
  1. 1857710291
    \(0 = a \sin(n \pi)\)
 no validation is available for declarations
10
  • 0000111698: expr 1 is true under condition expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is valid when Eq.~\ref{eq:#2} occurs; yields Eq.~\ref{eq:#3}.
  1. 1857710291
    \(0 = a \sin(n \pi)\)
  2. 1020010291
    \(0 = a \sin(k W)\)
  1. 1010923823
    \(k W = n \pi\)
 recognized infrule but not yet supported
11
  • 0000111975: divide both sides by
  • number of inputs: 1; feeds: 1; outputs: 1
  • Divide both sides of Eq.~\ref{eq:#2} by $#1$; yields Eq.~\ref{eq:#3}.
  1. 1010923823
    \(k W = n \pi\)
  1. 0001334112
    \(W\)
  1. 1858772113
    \(k = \frac{n \pi}{W}\)
 valid
12
  • 0000111634: substitute RHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute RHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 9059289981
    \(\psi(x) = a \sin(k x)\)
  2. 1858772113
    \(k = \frac{n \pi}{W}\)
  1. 2944838499
    \(\psi(x) = a \sin(\frac{n \pi}{W} x)\)
 Not evaluated due to missing term in SymPy
13
  • 0000111493: normalization condition
  • number of inputs: 0; feeds: 0; outputs: 1
  • Normalization condition is Eq.~\ref{eq:#1}.
  1. 1934748140
    \(\int |\psi(x)|^2 dx = 1\)
 no validation is available for assumptions
14
  • 0000111996: conjugate function X
  • number of inputs: 1; feeds: 1; outputs: 1
  • Conjugate $#1$ in Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 2944838499
    \(\psi(x) = a \sin(\frac{n \pi}{W} x)\)
  1. 0009587738
    \(\psi\)
  1. 8849289982
    \(\psi(x)^* = a \sin(\frac{n \pi}{W} x)\)
 recognized infrule but not yet supported
15
  • 0000111268: swap LHS with RHS
  • number of inputs: 1; feeds: 0; outputs: 1
  • Swap LHS of Eq.~\ref{eq:#1} with RHS; yields Eq.~\ref{eq:#2}.
  1. 1934748140
    \(\int |\psi(x)|^2 dx = 1\)
  1. 8572657110
    \(1 = \int |\psi(x)|^2 dx\)
 LHS diff is pdg0009199*Abs(pdg0009489(pdg0001464))**2 - Integral(Abs(pdg0009489(pdg0001464))**2, pdg0001464) RHS diff is 0
16
  • 0000111166: expand magnitude to conjugate
  • number of inputs: 1; feeds: 1; outputs: 1
  • Expand $#1$ in Eq.~\ref{eq:#2} with conjugate; yields Eq.~\ref{eq:#3}.
  1. 8572657110
    \(1 = \int |\psi(x)|^2 dx\)
  1. 0009458842
    \(\psi(x)\)
  1. 4857472413
    \(1 = \int \psi(x)\psi(x)^* dx\)
17
  • 0000111556: substitute LHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute LHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 4857472413
    \(1 = \int \psi(x)\psi(x)^* dx\)
  2. 2944838499
    \(\psi(x) = a \sin(\frac{n \pi}{W} x)\)
  1. 0203024440
    \(1 = \int_0^W a \sin\left(\frac{n \pi}{W} x\right) \psi(x)^* dx\)
 Not evaluated due to missing term in SymPy
18
  • 0000111556: substitute LHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute LHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 0203024440
    \(1 = \int_0^W a \sin\left(\frac{n \pi}{W} x\right) \psi(x)^* dx\)
  2. 8849289982
    \(\psi(x)^* = a \sin(\frac{n \pi}{W} x)\)
  1. 8889444440
    \(1 = \int_0^W a^2 \left(\sin\left(\frac{n \pi}{W} x\right) \right)^2 dx\)
 LHS diff is conjugate(pdg0009489(pdg0004037)) - 1 RHS diff is pdg0009139*(-pdg0009139*Piecewise((pdg0002523*(pdg0001592*pdg0003141/2 - sin(pdg0001592*pdg0003141)*cos(pdg0001592*pdg0003141)/2)/(pdg0001592*pdg0003141), Ne(pdg0001592*pdg0003141/pdg0002523, 0)), (0, True)) + sin(pdg0001592*pdg0003141*pdg0004037/pdg0002523**(pdg0009139*Integral(sin(pdg0001464*pdg0001592*pdg0003141/pdg0002523)*conjugate(pdg0009489(pdg0001464)), (pdg0001464, 0, pdg0002523)))))
19
  • 0000111299: declare identity
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an identity.
  1. 9988949211
    \((\sin(x))^2 = \frac{1 - \cos(2 x)}{2}\)
 no validation is available for declarations
20
  • 0000111886: change variable X to Y
  • number of inputs: 1; feeds: 2; outputs: 1
  • Change variable $#1$ to $#2$ in Eq.~\ref{eq:#3}; yields Eq.~\ref{eq:#4}.
  1. 9988949211
    \((\sin(x))^2 = \frac{1 - \cos(2 x)}{2}\)
  1. 0004934845
    \(x\)
  2. 0009484724
    \(\frac{n \pi}{W}x\)
  1. 7575738420
    \(\left(\sin\left(\frac{n \pi}{W}x\right) \right)^2 = \frac{1-\cos\left(2\frac{n \pi}{W}x\right)}{2}\)
 LHS diff is 0 RHS diff is cos(2*pdg0001464*pdg0001592*pdg0003141/pdg0002523)/2 - cos(2*pdg0001592*pdg0003141*pdg0004037/pdg0002523)/2
21
  • 0000111634: substitute RHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute RHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 8889444440
    \(1 = \int_0^W a^2 \left(\sin\left(\frac{n \pi}{W} x\right) \right)^2 dx\)
  2. 7575738420
    \(\left(\sin\left(\frac{n \pi}{W}x\right) \right)^2 = \frac{1-\cos\left(2\frac{n \pi}{W}x\right)}{2}\)
  1. 8576785890
    \(1 = \int_0^W a^2 \frac{1-\cos\left(2\frac{n \pi}{W}x\right)}{2} dx\)
 LHS diff is -cos(pdg0001592*pdg0003141*pdg0004037/pdg0002523)**2 RHS diff is -pdg0009139**2*Piecewise((pdg0002523*(pdg0001592*pdg0003141/2 - sin(pdg0001592*pdg0003141)*cos(pdg0001592*pdg0003141)/2)/(pdg0001592*pdg0003141), Ne(pdg0001592*pdg0003141/pdg0002523, 0)), (0, True)) + sin(pdg0001464*pdg0001592*pdg0003141/pdg0002523)**2
22
  • 0000111975: divide both sides by
  • number of inputs: 1; feeds: 1; outputs: 1
  • Divide both sides of Eq.~\ref{eq:#2} by $#1$; yields Eq.~\ref{eq:#3}.
  1. 8576785890
    \(1 = \int_0^W a^2 \frac{1-\cos\left(2\frac{n \pi}{W}x\right)}{2} dx\)
  1. 0000040490
    \(a^2\)
  1. 9858028950
    \(\frac{1}{a^2} = \int_0^W \frac{1-\cos\left(2\frac{n \pi}{W}x\right)}{2} dx\)
 valid
23
  • 0000111581: expand integrand
  • number of inputs: 1; feeds: 0; outputs: 1
  • Expand integrand of Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.
  1. 9858028950
    \(\frac{1}{a^2} = \int_0^W \frac{1-\cos\left(2\frac{n \pi}{W}x\right)}{2} dx\)
  1. 1202310110
    \(\frac{1}{a^2} = \int_0^W \frac{1}{2} dx - \frac{1}{2} \int_0^W \cos\left(2\frac{n \pi}{W}x\right) dx\)
 recognized infrule but not yet supported
24
  • 0000111299: declare identity
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an identity.
  1. 0948572140
    \(\int \cos(a x) dx = \frac{1}{a}\sin(a x)\)
 no validation is available for declarations
25
  • 0000111886: change variable X to Y
  • number of inputs: 1; feeds: 2; outputs: 1
  • Change variable $#1$ to $#2$ in Eq.~\ref{eq:#3}; yields Eq.~\ref{eq:#4}.
  1. 0948572140
    \(\int \cos(a x) dx = \frac{1}{a}\sin(a x)\)
  1. 0004831494
    \(a\)
  2. 0009485858
    \(\frac{2n\pi}{W}\)
  1. 7564894985
    \(\int \cos\left(\frac{2n\pi}{W} x\right) dx = \frac{W}{2n\pi}\sin\left(\frac{2n\pi}{W} x\right)\)
 LHS diff is pdg0009199*cos(2*pdg0001464*pdg0001592*pdg0003141/pdg0002523) - Piecewise((pdg0002523*sin(2*pdg0001592*pdg0003141*pdg0004037/pdg0002523)/(2*pdg0001592*pdg0003141), Ne(pdg0001592*pdg0003141/pdg0002523, 0)), (pdg0004037, True)) RHS diff is pdg0002523*(sin(2*pdg0001464*pdg0001592*pdg0003141/pdg0002523) - sin(2*pdg0001592*pdg0003141*pdg0004037/pdg0002523))/(2*pdg0001592*pdg0003141)
26
  • 0000111299: declare identity
  • number of inputs: 0; feeds: 0; outputs: 1
  • Eq.~\ref{eq:#1} is an identity.
  1. 5857434758
    \(\int a dx = a x\)
 no validation is available for declarations
27
  • 0000111886: change variable X to Y
  • number of inputs: 1; feeds: 2; outputs: 1
  • Change variable $#1$ to $#2$ in Eq.~\ref{eq:#3}; yields Eq.~\ref{eq:#4}.
  1. 5857434758
    \(\int a dx = a x\)
  1. 0004948585
    \(a\)
  2. 0002929944
    \(1/2\)
  1. 8575746378
    \(\int \frac{1}{2} dx = \frac{1}{2} x\)
 valid
28
  • 0000111556: substitute LHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute LHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 1202310110
    \(\frac{1}{a^2} = \int_0^W \frac{1}{2} dx - \frac{1}{2} \int_0^W \cos\left(2\frac{n \pi}{W}x\right) dx\)
  2. 8575746378
    \(\int \frac{1}{2} dx = \frac{1}{2} x\)
  1. 1202312210
    \(\frac{1}{a^2} = \frac{1}{2}W - \frac{1}{2} \int_0^W \cos\left(2\frac{n \pi}{W}x\right) dx\)
 LHS diff is pdg0001464/2 - 1/pdg0009139**2 RHS diff is pdg0001464/2 - pdg0002523/2 + Piecewise((pdg0002523*sin(2*pdg0001592*pdg0003141)/(2*pdg0001592*pdg0003141), Ne(pdg0001592*pdg0003141/pdg0002523, 0)), (pdg0002523, True))/2
29
  • 0000111634: substitute RHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute RHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 1202312210
    \(\frac{1}{a^2} = \frac{1}{2}W - \frac{1}{2} \int_0^W \cos\left(2\frac{n \pi}{W}x\right) dx\)
  2. 7564894985
    \(\int \cos\left(\frac{2n\pi}{W} x\right) dx = \frac{W}{2n\pi}\sin\left(\frac{2n\pi}{W} x\right)\)
  1. 0439492440
    \(\frac{1}{a^2} = \frac{1}{2}W - \frac{1}{2}\left. \frac{W}{2n\pi}\sin\left(\frac{2n\pi}{W} x\right) \right|_0^W\)
 LHS diff is Piecewise((pdg0002523*sin(2*pdg0001592*pdg0003141*pdg0004037/pdg0002523)/(2*pdg0001592*pdg0003141), Ne(pdg0001592*pdg0003141/pdg0002523, 0)), (pdg0004037, True)) - 1/pdg0009139**2 RHS diff is -pdg0002523/2 + 3*pdg0002523*sin(2*pdg0001592*pdg0003141*pdg0004037/pdg0002523)/(4*pdg0001592*pdg0003141)
30
  • 0000111457: simplify
  • number of inputs: 1; feeds: 0; outputs: 1
  • Simplify Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.
  1. 0439492440
    \(\frac{1}{a^2} = \frac{1}{2}W - \frac{1}{2}\left. \frac{W}{2n\pi}\sin\left(\frac{2n\pi}{W} x\right) \right|_0^W\)
  1. 4857475848
    \(\frac{1}{a^2} = \frac{W}{2}\)
 LHS diff is 0 RHS diff is -pdg0002523*sin(2*pdg0001592*pdg0003141*pdg0004037/pdg0002523)/(4*pdg0001592*pdg0003141)
31
  • 0000111182: multiply both sides by
  • number of inputs: 1; feeds: 1; outputs: 1
  • Multiply both sides of Eq.~\ref{eq:#2} by $#1$; yields Eq.~\ref{eq:#3}.
  1. 4857475848
    \(\frac{1}{a^2} = \frac{W}{2}\)
  1. 0009485857
    \(a^2\frac{2}{W}\)
  1. 8485867742
    \(\frac{2}{W} = a^2\)
 valid
32
  • 0000111524: square root both sides
  • number of inputs: 1; feeds: 0; outputs: 2
  • Take the square root of both sides of Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2} and Eq.~\ref{eq:#3}.
  1. 8485867742
    \(\frac{2}{W} = a^2\)
  1. 9485747246
    \(-\sqrt{\frac{2}{W}} = a\)
  2. 9485747245
    \(\sqrt{\frac{2}{W}} = a\)
33
  • 0000111556: substitute LHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute LHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 2944838499
    \(\psi(x) = a \sin(\frac{n \pi}{W} x)\)
  2. 9485747245
    \(\sqrt{\frac{2}{W}} = a\)
  1. 9393939991
    \(\psi(x) = -\sqrt{\frac{2}{W}} \sin\left(\frac{n \pi}{W} x\right)\)
 LHS diff is sqrt(2)*sqrt(1/pdg0002523) - pdg0009489(pdg0001464) RHS diff is pdg0009139 + sqrt(2)*sqrt(1/pdg0002523)*sin(pdg0001464*pdg0001592*pdg0003141/pdg0002523)
34
  • 0000111556: substitute LHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute LHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 2944838499
    \(\psi(x) = a \sin(\frac{n \pi}{W} x)\)
  2. 9485747246
    \(-\sqrt{\frac{2}{W}} = a\)
  1. 9393939992
    \(\psi(x) = \sqrt{\frac{2}{W}} \sin\left(\frac{n \pi}{W} x\right)\)
 LHS diff is -sqrt(2)*sqrt(1/pdg0002523) - pdg0009489(pdg0001464) RHS diff is pdg0009139 - sqrt(2)*sqrt(1/pdg0002523)*sin(pdg0001464*pdg0001592*pdg0003141/pdg0002523)
35
  • 0000111341: declare final expression
  • number of inputs: 1; feeds: 0; outputs: 0
  • Eq.~\ref{eq:#1} is one of the final equations.
  1. 9393939992
    \(\psi(x) = \sqrt{\frac{2}{W}} \sin\left(\frac{n \pi}{W} x\right)\)
no validation is available for declarations
37
  • 0000111634: substitute RHS of expr 1 into expr 2
  • number of inputs: 2; feeds: 0; outputs: 1
  • Substitute RHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.
  1. 8582885111
    \(\psi(x) = a \sin(kx) + b \cos(kx)\)
  2. 5727578862
    \(\frac{d^2}{dx^2} \psi(x) = -k^2 \psi(x)\)
  1. 8575748999
    \(\frac{d^2}{dx^2} \left(a \sin(k x) + b \cos(k x) \right) = -k^2 \left(a \sin(kx) + b \cos(kx) \right)\)
 Not evaluated due to missing term in SymPy
38
  • 0000111457: simplify
  • number of inputs: 1; feeds: 0; outputs: 1
  • Simplify Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.
  1. 8575748999
    \(\frac{d^2}{dx^2} \left(a \sin(k x) + b \cos(k x) \right) = -k^2 \left(a \sin(kx) + b \cos(kx) \right)\)
  1. 8485757728
    \(a \frac{d^2}{dx^2}\sin(kx) + b \frac{d^2}{dx^2}\cos(k x) = -a k^2 \sin(kx) + -b k^2 \cos(kx)\)
 Not evaluated due to missing term in SymPy
39
  • 0000111457: simplify
  • number of inputs: 1; feeds: 0; outputs: 1
  • Simplify Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.
  1. 8485757728
    \(a \frac{d^2}{dx^2}\sin(kx) + b \frac{d^2}{dx^2}\cos(k x) = -a k^2 \sin(kx) + -b k^2 \cos(kx)\)
  1. 8484544728
    \(-a k^2\sin(k x) + -b k^2\cos(k x) = -a k^2 \sin(kx) + -b k^2 \cos(k x)\)
 Not evaluated due to missing term in SymPy
40
  • 0000111345: claim LHS equals RHS
  • number of inputs: 1; feeds: 0; outputs: 0
  • Thus we see that LHS of Eq.~\ref{eq:#1} is equal to RHS.
  1. 8484544728
    \(-a k^2\sin(k x) + -b k^2\cos(k x) = -a k^2 \sin(kx) + -b k^2 \cos(k x)\)
Not evaluated due to missing term in SymPy

Symbols used in particle in a 1D box

Steps and expressions for particle in a 1D box

d3js visualization of steps and expressions in particle in a 1D box


Hold the mouse over a node to highlight that node and its neighbors. You can zoom in/out. You can pan the image. You can move nodes by clicking and dragging.

Actions: Edit Derivation

You must be logged in to edit the steps of derivation, edit the abstract, or rename the derivation.

Generate Tex file or PDF file
   xor

Delete Derivation and all associated steps

You must be logged in to delete the derivation.

timing of Neo4j queries:
