Review Derivation: Physics Derivation Graph

MESSAGE:

pdg_app/to_review_derivation sympy_validate_step.validate_step: AssertionError 0005211114

Return to navigation page or list derivations

Review Lorentz transformation

abstract: source: \cite{1999_Tipler_Llewellyn}, page 21; see also \url{https://en.wikipedia.org/wiki/Lorentz\_transformation} and \url{https://en.wikipedia.org/wiki/Derivations\_of\_the\_Lorentz\_transformations}
reference:

step	inference rule	input	feed	output	step validity (as per SymPy)
Note about step 1: equation 1-13 on page 21 in \cite{1999_Tipler_Llewellyn}
1	0000111981: declare initial expression number of inputs: 0; feeds: 0; outputs: 1 Eq.~\ref{eq:#1} is an initial equation.			4662369843 $x' = \gamma (x - v t)$	no validation is available for declarations
Note about step 2: equation 1-14 on page 21 in \cite{1999_Tipler_Llewellyn}
2	0000111981: declare initial expression number of inputs: 0; feeds: 0; outputs: 1 Eq.~\ref{eq:#1} is an initial equation.			2983053062 $x = \gamma (x' + v t')$	no validation is available for declarations
Note about step 3: solve output expr for $t$'
3	0000111556: substitute LHS of expr 1 into expr 2 number of inputs: 2; feeds: 0; outputs: 1 Substitute LHS of Eq.~\ref{eq:#1} into Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.	2983053062 $x = \gamma (x' + v t')$ 4662369843 $x' = \gamma (x - v t)$		3426941928 $x = \gamma ( \gamma (x - v t) + v t' )$	LHS diff is -pdg0004037 + pdg0005456 RHS diff is pdg0001790(-pdg0001357pdg0001467 - pdg0001357pdg0004989 + pdg0001464 + pdg0001790(pdg0001357*pdg0001467 - pdg0004037))
4	0000111457: simplify number of inputs: 1; feeds: 0; outputs: 1 Simplify Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.	3426941928 $x = \gamma ( \gamma (x - v t) + v t' )$		2096918413 $x = \gamma ( \gamma x - \gamma v t + v t' )$	LHS diff is 0 RHS diff is pdg0001790(pdg0001357pdg0004989 - pdg0001790(pdg0001357pdg0001467 - pdg0004037)) - pdg0001790(-pdg0001357pdg0001467pdg0001790 + pdg0001357pdg0004989 + pdg0001790pdg0004037)
5	0000111457: simplify number of inputs: 1; feeds: 0; outputs: 1 Simplify Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.	2096918413 $x = \gamma ( \gamma x - \gamma v t + v t' )$		7741202861 $x = \gamma^2 x - \gamma^2 v t + \gamma v t'$	LHS diff is 0 RHS diff is pdg0001357pdg0001467pdg0001790*2 - pdg0001357pdg0001790pdg0004989 - pdg00017902pdg0004037 + pdg0001790(-pdg0001357pdg0001467pdg0001790 + pdg0001357pdg0004989 + pdg0001790pdg0004037)
6	0000111282: subtract X from both sides number of inputs: 1; feeds: 1; outputs: 1 Subtract $#1$ from both sides of Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.	7741202861 $x = \gamma^2 x - \gamma^2 v t + \gamma v t'$	7337056406 $\gamma^2 x$	4139999399 $x - \gamma^2 x = - \gamma^2 v t + \gamma v t'$	valid
7	0000111613: factor out X from LHS number of inputs: 1; feeds: 1; outputs: 1 Factor $#1$ from the LHS of Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.	4139999399 $x - \gamma^2 x = - \gamma^2 v t + \gamma v t'$	3495403335 $x$	9031609275 $x (1 - \gamma^2 ) = - \gamma^2 v t + \gamma v t'$	Not evaluated due to missing term in SymPy
8	0000111530: add X to both sides number of inputs: 1; feeds: 1; outputs: 1 Add $#1$ to both sides of Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.	9031609275 $x (1 - \gamma^2 ) = - \gamma^2 v t + \gamma v t'$	8014566709 $\gamma^2 v t$	9409776983 $x (1 - \gamma^2 ) + \gamma^2 v t = \gamma v t'$	Not evaluated due to missing term in SymPy
9	0000111975: divide both sides by number of inputs: 1; feeds: 1; outputs: 1 Divide both sides of Eq.~\ref{eq:#2} by $#1$; yields Eq.~\ref{eq:#3}.	9409776983 $x (1 - \gamma^2 ) + \gamma^2 v t = \gamma v t'$	2226340358 $\gamma v$	1974334644 $\frac{x (1 - \gamma^2 )}{\gamma v} + \frac{\gamma^2 v t}{\gamma v} = t'$	Not evaluated due to missing term in SymPy
10	0000111457: simplify number of inputs: 1; feeds: 0; outputs: 1 Simplify Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.	1974334644 $\frac{x (1 - \gamma^2 )}{\gamma v} + \frac{\gamma^2 v t}{\gamma v} = t'$		8730201316 $\frac{\gamma x (1 - \gamma^2 )}{\gamma^2 v} + \gamma t = t'$	Not evaluated due to missing term in SymPy
11	0000111268: swap LHS with RHS number of inputs: 1; feeds: 0; outputs: 1 Swap LHS of Eq.~\ref{eq:#1} with RHS; yields Eq.~\ref{eq:#2}.	8730201316 $\frac{\gamma x (1 - \gamma^2 )}{\gamma^2 v} + \gamma t = t'$		5148266645 $t' = \frac{\gamma x (1 - \gamma^2 )}{\gamma^2 v} + \gamma t$	Not evaluated due to missing term in SymPy
12	0000111981: declare initial expression number of inputs: 0; feeds: 0; outputs: 1 Eq.~\ref{eq:#1} is an initial equation.			4287102261 $x^2 + y^2 + z^2 = c^2 t^2$	no validation is available for declarations
13	0000111981: declare initial expression number of inputs: 0; feeds: 0; outputs: 1 Eq.~\ref{eq:#1} is an initial equation.			1201689765 $x'^2 + y'^2 + z'^2 = c^2 t'^2$	no validation is available for declarations
14	0000111104: declare assumption number of inputs: 0; feeds: 0; outputs: 1 Eq.~\ref{eq:#1} is an assumption.			7057864873 $y' = y$	no validation is available for declarations
15	0000111104: declare assumption number of inputs: 0; feeds: 0; outputs: 1 Eq.~\ref{eq:#1} is an assumption.			8515803375 $z' = z$	no validation is available for declarations
16	0000111797: substitute LHS of four expressions into expression number of inputs: 5; feeds: 0; outputs: 1 Substitute LHS of Eq.~\ref{eq:#1} and LHS of Eq.~\ref{eq:#2} and LHS of Eq.~\ref{eq:#3} and LHS of Eq.~\ref{eq:#4} into Eq.~\ref{eq:#5}; yields Eq.~\ref{eq:#6}.	1201689765 $x'^2 + y'^2 + z'^2 = c^2 t'^2$ 4662369843 $x' = \gamma (x - v t)$ 5148266645 $t' = \frac{\gamma x (1 - \gamma^2 )}{\gamma^2 v} + \gamma t$ 7057864873 $y' = y$ 8515803375 $z' = z$		9805063945 $\gamma^2 (x - v t)^2 + y^2 + z^2 = c^2 \gamma^2 \left( t + \frac{ 1 - \gamma^2 }{ \gamma^2 } \frac{x}{v} \right)^2$	recognized infrule but not yet supported
Note about step 17: expanded the squared terms
17	0000111457: simplify number of inputs: 1; feeds: 0; outputs: 1 Simplify Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.	9805063945 $\gamma^2 (x - v t)^2 + y^2 + z^2 = c^2 \gamma^2 \left( t + \frac{ 1 - \gamma^2 }{ \gamma^2 } \frac{x}{v} \right)^2$		1935543849 $\gamma^2 x^2 - \gamma^2 2 x v t + \gamma^2 v^2 t^2 + y^2 + z^2 = c^2 \gamma^2 \left(\frac{1-\gamma^2}{\gamma^2}\right)\frac{x^2}{\gamma^2} + c^2 \gamma^2 2 t \left(\frac{1-\gamma^2}{\gamma^2}\right)\frac{x}{\gamma} + c^2 \gamma^2 t^2$	LHS diff is 0 RHS diff is pdg0004567*2(-pdg0001357*2pdg0001467*2pdg0001790*4 + 2pdg0001357*2pdg0001467pdg0001790pdg0004037(pdg00017902 - 1) + pdg00013572pdg0004037*2(pdg0001790*2 - 1) + (pdg0001357pdg0001467pdg00017902 - pdg0004037(pdg00017902 - 1))2)/(pdg0001357*2pdg0001790**2)
Note about step 18: grouped by terms for $x^2$, $xt$, and $t^2$
18	0000111457: simplify number of inputs: 1; feeds: 0; outputs: 1 Simplify Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2}.	1935543849 $\gamma^2 x^2 - \gamma^2 2 x v t + \gamma^2 v^2 t^2 + y^2 + z^2 = c^2 \gamma^2 \left(\frac{1-\gamma^2}{\gamma^2}\right)\frac{x^2}{\gamma^2} + c^2 \gamma^2 2 t \left(\frac{1-\gamma^2}{\gamma^2}\right)\frac{x}{\gamma} + c^2 \gamma^2 t^2$		1586866563 $\left( \gamma^2 - c^2 \gamma^2 \left( \frac{1-\gamma^2}{\gamma^2} \right)^2 \frac{1}{v^2} \right) x^2 + y^2 + z^2 + \left( -\gamma^2 2 x v t - c^2 \gamma^2 2 t \left( \frac{1-\gamma^2}{\gamma^2} \right) \frac{x}{v} \right) = t^2 \left( c^2 \gamma^2 - \gamma^2 v^2 \right)$	LHS diff is pdg0001357*2pdg0001467*2pdg0001790*2 - 2pdg0001467pdg00017902pdg0004037pdg00045672/pdg0001357 + 2pdg0001467pdg0004037pdg00045672/pdg0001357 + pdg00040372pdg00045672(pdg00017902 - 1)2/(pdg0001357*2pdg00017902) RHS diff is (pdg00013572pdg00014672pdg0001790*4 - 2pdg0001467pdg0001790pdg0004037pdg00045672(pdg00017902 - 1) - pdg00040372pdg00045672(pdg00017902 - 1))/pdg00017902
Note about step 19: based on the comparison of the $x^2$ terms
19	0000111768: expr 1 is equivalent to expr 2 under the condition number of inputs: 2; feeds: 0; outputs: 1 Eq.~\ref{eq:#1} is equivalent to Eq.~\ref{eq:#2} under the condition in Eq.~\ref{eq:#3}.	1586866563 $\left( \gamma^2 - c^2 \gamma^2 \left( \frac{1-\gamma^2}{\gamma^2} \right)^2 \frac{1}{v^2} \right) x^2 + y^2 + z^2 + \left( -\gamma^2 2 x v t - c^2 \gamma^2 2 t \left( \frac{1-\gamma^2}{\gamma^2} \right) \frac{x}{v} \right) = t^2 \left( c^2 \gamma^2 - \gamma^2 v^2 \right)$ 4287102261 $x^2 + y^2 + z^2 = c^2 t^2$		3182633789 $\gamma^2 - c^2 \gamma^2 \frac{(1-\gamma^2)^2}{v^2 \gamma^4} = 1$	recognized infrule but not yet supported
Note about step 20: based on the comparison of the $t^2$ terms
20	0000111768: expr 1 is equivalent to expr 2 under the condition number of inputs: 2; feeds: 0; outputs: 1 Eq.~\ref{eq:#1} is equivalent to Eq.~\ref{eq:#2} under the condition in Eq.~\ref{eq:#3}.	1586866563 $\left( \gamma^2 - c^2 \gamma^2 \left( \frac{1-\gamma^2}{\gamma^2} \right)^2 \frac{1}{v^2} \right) x^2 + y^2 + z^2 + \left( -\gamma^2 2 x v t - c^2 \gamma^2 2 t \left( \frac{1-\gamma^2}{\gamma^2} \right) \frac{x}{v} \right) = t^2 \left( c^2 \gamma^2 - \gamma^2 v^2 \right)$ 4287102261 $x^2 + y^2 + z^2 = c^2 t^2$		1916173354 $-\gamma^2 v^2 + c^2 \gamma^2 = c^2$	recognized infrule but not yet supported
Note about step 21: based on the comparison of the $(x t)$ terms
21	0000111768: expr 1 is equivalent to expr 2 under the condition number of inputs: 2; feeds: 0; outputs: 1 Eq.~\ref{eq:#1} is equivalent to Eq.~\ref{eq:#2} under the condition in Eq.~\ref{eq:#3}.	1586866563 $\left( \gamma^2 - c^2 \gamma^2 \left( \frac{1-\gamma^2}{\gamma^2} \right)^2 \frac{1}{v^2} \right) x^2 + y^2 + z^2 + \left( -\gamma^2 2 x v t - c^2 \gamma^2 2 t \left( \frac{1-\gamma^2}{\gamma^2} \right) \frac{x}{v} \right) = t^2 \left( c^2 \gamma^2 - \gamma^2 v^2 \right)$ 4287102261 $x^2 + y^2 + z^2 = c^2 t^2$		2076171250 $-\gamma^2 2 x v t - c^2 \gamma^2 2 t \left( \frac{1-\gamma^2}{\gamma^2} \right) \frac{x}{v} = 0$	recognized infrule but not yet supported
Note about step 22: solve for $\gamma$
22	0000111282: subtract X from both sides number of inputs: 1; feeds: 1; outputs: 1 Subtract $#1$ from both sides of Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.	3182633789 $\gamma^2 - c^2 \gamma^2 \frac{(1-\gamma^2)^2}{v^2 \gamma^4} = 1$	5284610349 $\gamma^2$	2417941373 $- c^2 \gamma^2 \frac{(1-\gamma^2)^2}{v^2 \gamma^4} = 1 - \gamma^2$	valid
23	0000111975: divide both sides by number of inputs: 1; feeds: 1; outputs: 1 Divide both sides of Eq.~\ref{eq:#2} by $#1$; yields Eq.~\ref{eq:#3}.	2417941373 $- c^2 \gamma^2 \frac{(1-\gamma^2)^2}{v^2 \gamma^4} = 1 - \gamma^2$	5787469164 $1 - \gamma^2$	1639827492 $- c^2 \frac{(1-\gamma^2)}{v^2 \gamma^2} = 1$	valid
24	0000111182: multiply both sides by number of inputs: 1; feeds: 1; outputs: 1 Multiply both sides of Eq.~\ref{eq:#2} by $#1$; yields Eq.~\ref{eq:#3}.	1639827492 $- c^2 \frac{(1-\gamma^2)}{v^2 \gamma^2} = 1$	5669500954 $v^2 \gamma^2$	5763749235 $-c^2 + c^2 \gamma^2 = v^2 \gamma^2$	valid
25	0000111530: add X to both sides number of inputs: 1; feeds: 1; outputs: 1 Add $#1$ to both sides of Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.	5763749235 $-c^2 + c^2 \gamma^2 = v^2 \gamma^2$	6408214498 $c^2$	2999795755 $c^2 \gamma^2 = v^2 \gamma^2 + c^2$	valid
26	0000111282: subtract X from both sides number of inputs: 1; feeds: 1; outputs: 1 Subtract $#1$ from both sides of Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.	2999795755 $c^2 \gamma^2 = v^2 \gamma^2 + c^2$	3412946408 $v^2 \gamma^2$	2542420160 $c^2 \gamma^2 - v^2 \gamma^2 = c^2$	valid
27	0000111613: factor out X from LHS number of inputs: 1; feeds: 1; outputs: 1 Factor $#1$ from the LHS of Eq.~\ref{eq:#2}; yields Eq.~\ref{eq:#3}.	2542420160 $c^2 \gamma^2 - v^2 \gamma^2 = c^2$	7743841045 $\gamma^2$	7513513483 $\gamma^2 (c^2 - v^2) = c^2$	valid
28	0000111975: divide both sides by number of inputs: 1; feeds: 1; outputs: 1 Divide both sides of Eq.~\ref{eq:#2} by $#1$; yields Eq.~\ref{eq:#3}.	7513513483 $\gamma^2 (c^2 - v^2) = c^2$	8571466509 $c^2 - \gamma^2$	7906112355 $\gamma^2 = \frac{c^2}{c^2 - \gamma^2}$	Algebraic error: LHS diff is pdg0001790*2(pdg00013572 - pdg00017902)/(pdg00017902 - pdg00045672), RHS diff is 0
29	0000111524: square root both sides number of inputs: 1; feeds: 0; outputs: 2 Take the square root of both sides of Eq.~\ref{eq:#1}; yields Eq.~\ref{eq:#2} and Eq.~\ref{eq:#3}.	7906112355 $\gamma^2 = \frac{c^2}{c^2 - \gamma^2}$		8360117126 $\gamma = \frac{-1}{\sqrt{1-\frac{v^2}{c^2}}}$ 1528310784 $\gamma = \frac{1}{\sqrt{1-\frac{v^2}{c^2}}}$
Note about step 30: Lorentz factor definition
30	0000111341: declare final expression number of inputs: 1; feeds: 0; outputs: 0 Eq.~\ref{eq:#1} is one of the final equations.	1528310784 $\gamma = \frac{1}{\sqrt{1-\frac{v^2}{c^2}}}$			no validation is available for declarations

Symbols used in Lorentz transformation

0000001790: $ \gamma $
0000004567: $ c $
0000001467: $ t $
0000004989: $ t' $
0000001357: $ v $
0000004037: $ x $
0000001464: $ x $
0000005456: $ x' $
0000005647: $ y $
0000001888: $ y' $
0000006728: $ z $
0000004306: $ z' $

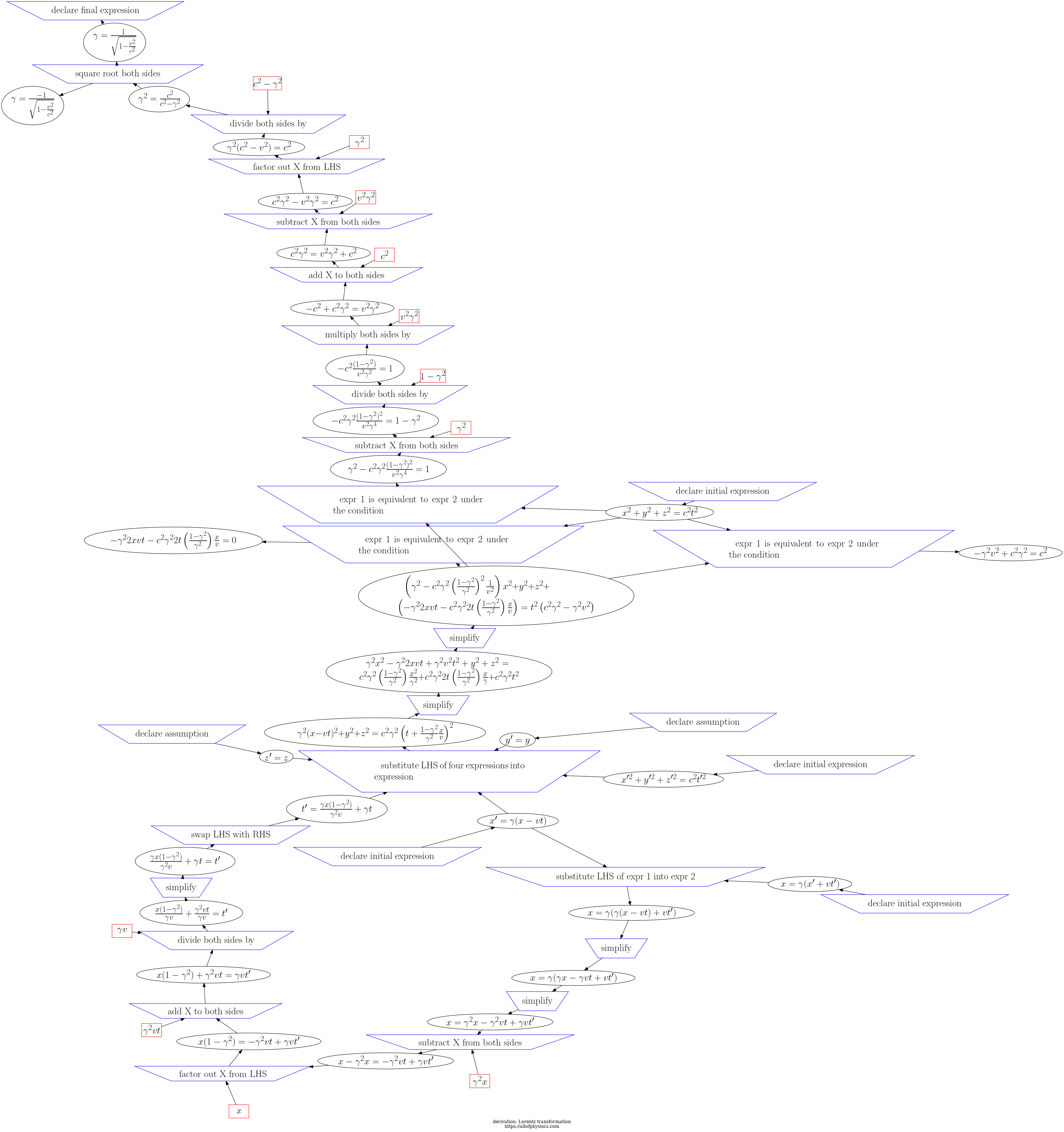

d3js visualization of steps and expressions in Lorentz transformation

Hold the mouse over a node to highlight that node and its neighbors. You can zoom in/out. You can pan the image. You can move nodes by clicking and dragging.

Actions: Edit Derivation

You must be logged in to edit the steps of derivation, edit the abstract, or rename the derivation.

Generate Tex file or PDF file

Delete Derivation and all associated steps

You must be logged in to delete the derivation.
